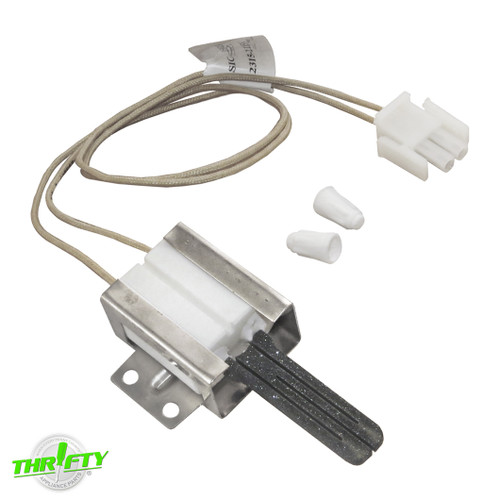

Replacement ignitor used for some GE range models.
Directly Replaces: WB13K10043, 2119389, AP5645233, EAP4704151, PD00033065, PS4704151.
Features:
- Draws electrical current through the oven safety valve to open it, then ignites gas burners to heat the oven to temperature.
- Includes (1) Igniter with Bracket and Lead / Plug Assembly, (2) Porcelain Wire Connectors.
Specifications:
- Color: White / Black / Gray.
- Material: Metal / Ceramic / Plastic.
- Electrical Specs: 115V, 3.2 - 3.6A.
- Ignitor Dimensions: 3-1/2"L x 1-3/4"W x 7/8"H.
- Additional Dimensions: Lead and plug extend approx. 18" from ignitor.
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
Repair Skill Level: 2 | Beginner to Moderate
Minimal disassembly (if any) and some basic tools may be needed.
Part Description: Regulates the heat level of the burner element.
Failure Symptoms: Cannot control the burner temperature, or cannot turn the burner on/off; Burner will not heat.
Testing: If you're unable to control an electric burner, the burner's infinite switch should be replaced.
Bonus Tip: Easily determine if the element or switch is defective by switching the non-working element with a working one. If the new element works, the the old element was defective. If the new element does not work, it likely that the switch is defective.
