Replacement ice maker used for some Amana, Kenmore, Maytag, and Whirlpool refrigerator models.
Directly Replaces: 5304532555, 5304520536, 5304523840, 5304525922, 5304525923, 5304531891, 5304532178, 5304532194, 5304532196, 5304532554, 5304535023, 220627M00323, 8W-134/P-90, ANC A11127913, EG-32.0309.1, 4976346, AFR19427, AP7193288, EAP16745549, FIX16745549, PD00075188, PS16745549, 4961086, AP6809232, AWP44223, EAP12584610, PD00069620, PS12584610, WPW10179146, W10179146, PS11749668, W10155357, WPW10179146VP, 1546655, AP6016381, EAP11749668, PD00008837, PS11749668.
Features:
- Ice maker makes ice for the ice dispenser; Water valve controls the flow of water to the unit.
- Ice maker with 7-second and 14-second optional fill switch.
- Mylar tape used for spark proofing ice maker.

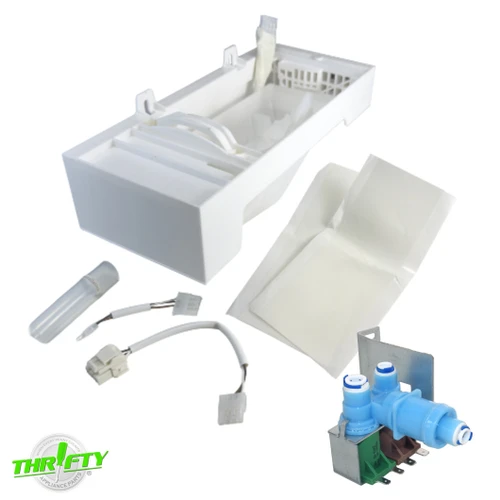

- Includes (1) 10-Cube Ice Maker, (1) 4-pin to 5-pin harness adapter, (1) 4-pin to 3-pin harness adapter (1) mylar tape, (1) chute attachment, (1) 2-Solenoid Water Valve with Bracket.
APNICEMKR3 Ice Maker Specifications:
- Color: White.
- Material: Plastic Housing.
APNW10179146 Water Valve Specifications:
- Color: Blue / Brown / Green / Gray.
- Material: Plastic / Metal.
- Electrical Specs: 120V (ea), 50/60Hz (ea), 20W (Green), 35W (Brown).
- Dimensions: 5"L x 2-3/4"W x 3"H.
- Additional Dimensions: 1/4" inlet, 1/4" and 5/16" outlets; 3/16" male terminals (Green), 1/4" male terminals (Brown).
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
