W10300022 W10179146 Refrigerator Ice Maker & Water Valve For Whirlpool / Kenmore

(No reviews yet) Write a Review
SKU: APNW10300022-9146_KIT
Condition: New
(You save $67.73 )

5% Off Orders Over $75

© 2024 Thrifty Appliance Parts           Some photos taken on 1" x 1" grid.

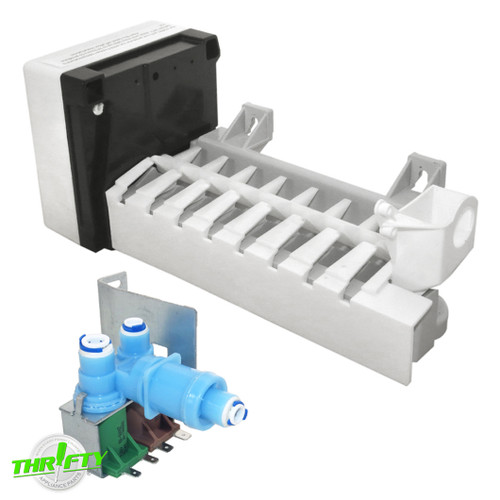

Replacement ice maker and water valve used for some Kenmore and Whirlpool refrigerator models.

Directly Replaces: WPW10300022, W10300022, W10122556, W10377190, RIM0022, 1875826, AH3492269, AP6019085, AP4982689, EA3492269, EAP11752389, PD00016871, PS11752389, PS3492269, WPW10179146, W10179146, PS11749668, W10155357, WPW10179146VP, 1546655, AP6016381, EAP11749668, PD00008837, PS11749668.


  • The water valve controls the flow of water to the unit; The ice maker creates ice cubes to be stored in the ice bin.
  • Typically used on side by side units.
  • Ice maker with double finger ice ejector.
  • Must re-use harness and shut-off arm.
  • Includes (1) 8-Cube Ice Maker, (1) 2-Solenoid Water Valve with Bracket

APNW10300022 Ice Maker Specifications:

  • Color: White / Gray / Black.
  • Material: Plastic / Metal.
  • Electronic Specs: 115V, 60Hz, 260W, 2.2A.
  • Dimensions: 13-1/2"L x 4-5/8"W x 4-3/4"H.

APNW10179146 Water Valve Specifications:

  • Color: Blue / Brown / Green / Gray.
  • Material: Plastic / Metal.
  • Electrical Specs: 120V (ea), 50/60Hz (ea), 20W (Green), 35W (Brown).
  • Dimensions: 5"L x 2-3/4"W x 3"H.
  • Additional Dimensions: 1/4" inlet, 1/4" and 5/16" outlets; 3/16" male terminals (Green), 1/4" male terminals (Brown).

Compatible Models:

How do I find my model number?
