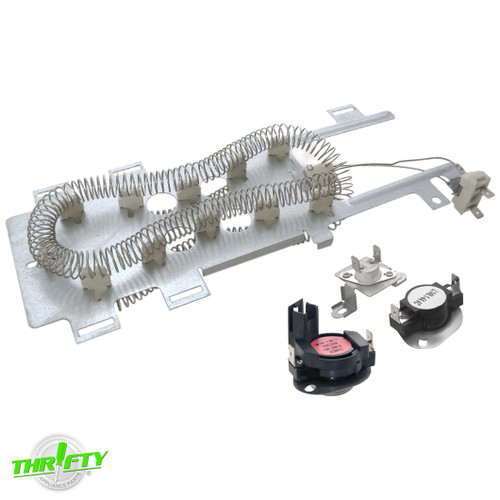

8544771 Dryer Heating Element For Whirlpool / Maytag / Amana

(6 reviews) Write a Review
SKU: APN8544771
Condition: New
Compatible Brands:
Amana
Compatible Brands:
Crosley
Compatible Brands:
Inglis
Compatible Brands:
Kenmore
Compatible Brands:
Maytag
Compatible Brands:
Whirlpool
$66.13
$21.75
(You save $44.38 )

5% Off Orders Over $75

© 2024 Thrifty Appliance Parts           Some photos taken on 1" x 1" grid.

Replacement heating element used for some Amana, Crosley, Inglis, Kenmore, Maytag, and Whirlpool dryer models.

Directly Replaces: WP8544771, 8544771, W10836011, WP8544771VP,DE771, PAT#7154072, 1180054, AH990361, AP3866035, AP6013115, EA990361, EAP11746337, PD00002399, PS990361, PS11746337.

Features:

  • Produces heat while the dryer is in operation.
  • Must re-use the housing from the old heating element.
  • Insulators and restring already attached for easy installation.
  • Includes (1) Heater Coil with (2) 5/16" Male Terminals.

Specifications:

  • Material: Metal / Ceramic.
  • Electrical Specs: 240V, 5400W.
  • Overall Dimensions: 13-7/8"L x 6-1/2"W x 2-1/2"H.

Compatible Models:

How do I find my model number?
8544771 Dryer Heating Element For Whirlpool / Maytag / Amana

Repair Skill Level: 2 | Beginner to Moderate
Minimal disassembly (if any) and some basic tools may be needed.

Part Description: The heating assembly produces heat while the dryer is in operation.

Failure Symptoms: Dryer overheats, will not heat at all, or takes an increasing amount of time to dry your clothes.

Testing: Check for damage or breaks in the element coil. Use a multimeter to test it for continuity. If there is damage to the coil or if heating element does not have continuity, replace it.

Bonus Tip: The thermal fuse and high limit thermostat should also be checked for failure, as they may also be affected.

Disclaimer: Information and recommendations contained herein are believed to be accurate as of the date hereof. Since the conditions and methods of use of the information referred to are beyond control, ApplianceRepairForum.com and Thrifty Appliance Parts LLC, cannot be held liable for results obtained or arising from use or reliance on such information.
The User assumes responsibility associated with making test measurements, adjustments, parts replacements and any other action necessary to perform any recommended procedures. It is the responsibility of the User to ask for clarification if a recommendation is not fully understood, including the risks and hazards associated with the recommended procedures.

  • works great
    5

    Posted by ron on 24th Sep 2022

    easy to instal

  • exact match! One end was bent a little, but the needle nose flattened it right out! quick service and shipping! Thanks!
    4

    Posted by john on 25th May 2020

    see above

  • Drier heating element
    5

    Posted by John on 28th Sep 2019

    Product as described, overall no issues ,will recommend to others

  • Correct Part, Timely Delivery
    5

    Posted by Anonymous on 17th Jul 2018

    Continued excellent parts and service from Thrifty Appliance Repair Parts. You have saved me hundreds of dollars in repair bills.

  • Heating element whirlpool 8544771
    4

    Posted by R. Sharp on 14th Dec 2016

    The part had above average construction . Materials , ie nichrom wire
    assembly and porcelain connectors very similar to o.e.m.
    Sheet metal fit as o.e.m part should.
    Would not use for warranty work, due lack of supporting documentation.
    Can not beat the quality for that price.
    Decent product , good value. Price point could increase bottom on marginal service calls.

  • Dryer Healting Element
    5

    Posted by Anonymous on 9th Sep 2015

    Fast shipping! Works great!
