Replacement evaporator fan motor and temperature sensor used for some GE refrigerator models.
Directly Replaces: WR60X35205, WR60X20880, WR60X29099, WR60X24723, WR60X26281, WR60X35665, 197D9873P002, 197D9873P003, DAZB0838RCM, 4590361, 4963678, AGE29910, AP6783211, AP6997194, EAP12345168, EAP16226575, PD00071276, PS12345168, PS16226575, WR55X10025, WR50X10027, WR50X10034, WR50X10055, WR50X10067, WR55X10025B, WR55X10026, WR55X10027, WR55X10028, WR55X10030, WR55X10087, WR55X10088, WR55X10089, WR55X10367, WR55X10380, WR55X10661, WR55X10711, WR55X10735, WR55X10736, WR55X10737, WR55X10937, WR55X10938, WR55X10939, WR55X11152, WR55X11121, WR55X11140, WR55X11141, WR55X11142, WR55X11150, WR55X11151, WR55X11152, WR55X11153, TH10025, 914093, AH304103, AP3185407, EA304103, EAP304103, PD00000992, PS304103.
Features:
- Evaporator fan motor pulls air through the evaporator coils to remove heat from the circulating air within the unit; Thermistor senses cabinet temperature.

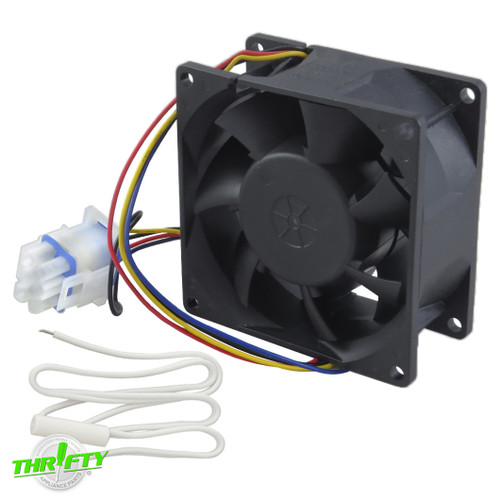

- Includes (1) Evaporator Fan & Motor Assembly with Harness, (1) Temperature Sensor with Wire Lead.
APNWR60X35205 Evaporator Fan Motor Specifications:
- Color: Black with Multi-Colored Harness.
- Material: Plastic / Metal.
- Electrical Specs: 13.6VDC, 0.17A.
APNWR55X10025 Temperature Sensor Specifications:
- Color: White.
- Material: Plastic / Metal.
- Finish: Semi-Gloss.
- Overall Dimensions: 22-1/2"L x 5/16" Diameter.
- Additional Dimensions: Probe measures 1-1/4"L x 5/16" Diameter; Lead extends approx. 21-1/4"L from probe.
Compatible Models:
