WR60X31522 WR60X10204 Refrigerator Evap Motor & Blade Kit For GE / Hotpoint

Replacement evaporator fan motor and blade kit used for some GE and Hotpoint refrigerator models.

Directly Replaces: WR60X31522, WR60X10045, WR60X10046, WR60X10072, WR60X10138, WR60X10141, WR60X10346, WR60X23584, WR60X27646, WR60X28783, WR60X28784, WR60X31122, WR60X31523, 4959523, AP6977246, EAP12741350, PD00062864, PS12741350, WR60X10204, WR60X10047, WR60X10188, 1170120, AH1018129, AP3868989, EA1018129, EAP1018129, PD00023121, PS1018129.

Features:

• Work together to pull air through the evaporator coils to remove heat from the circulating air within the unit.
• Typically used on top mount freezer units.
• Motor Uses a two pin connector plus ground wire.

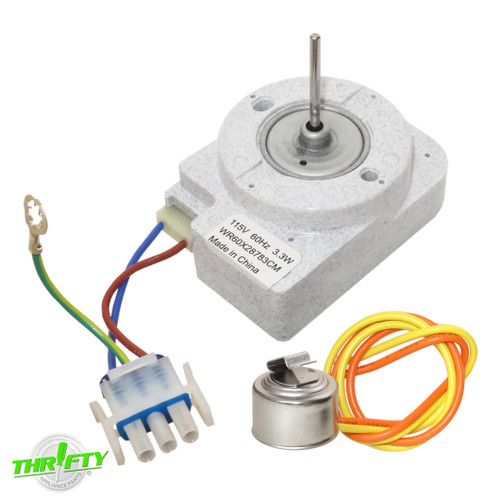

• Includes (1) Evaporator Fan Motor with Harness and Plug, (1) 5-Blade Fan with Retainer Spring.

APNWR60X31522 Evap Motor Specifications:

• Color: Marbled White & Gray / Gray.
• Material: Plastic / Metal.
• Electrical Specs: 115V, 60Hz x 3.3W.
• Dimensions: 3-1/4"L x 2-3/8"W x 3-3/8"H.
• Additional Dimensions: Harness and plug extend 3-1/2" from motor.

APNWR60X10204 Fan Blade Specifications:

• Color: Black.
• Material: Plastic.
• Finish: Semi-Gloss.
• Dimensions: 4-1/2" Diameter x 1 1/4"W.
