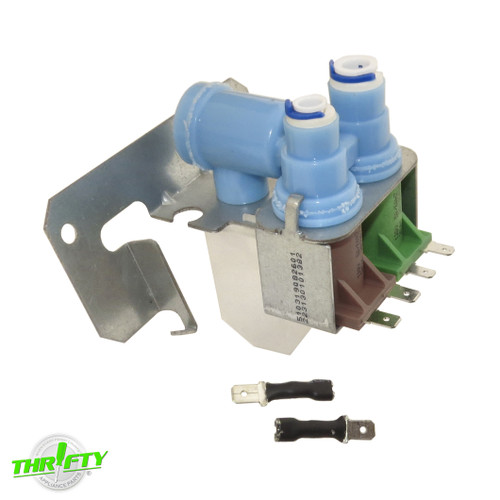

WR57X10051 Refrigerator Dual Water Inlet Valve For Kenmore

(No reviews yet) Write a Review
SKU: APNWR57X10051K
Condition: New
Compatible Brands:
GE
Compatible Brands:
Hotpoint
Compatible Brands:
Kenmore
$33.93
$19.75
(You save $14.18 )

5% Off Orders Over $75

© 2024 Thrifty Appliance Parts           Some photos taken on 1" x 1" grid.

Replacement dual water inlet valve kit used for some GE, Hotpoint, and Kenmore refrigerator models.

Directly Replaces: WR57X10051, WR57X10012, IMV-513, IMV513, WR02X10105, WR2X10105, WR57X0092, WR57X0098, WR57X0099, WR57X0104, WR57X0111, WR57X0119, WR57X10010, WR57X10018, WR57X10018E, WR57X104, WR57X111, WR57X119, WR57X92, WR57X98, WR57X99, WV10051, 1032629, AH901314, AP3672839, EA901314, EAP901314, PD00000995, PS901314.

Features:

  • Controls the flow of water to the unit.
  • Typically used on side by side units.
  • Dual coil water inlet valve, with additional 3/16" to 1/4" terminal adapter set.
  • 1/4" and 5/16" push connect water tube outlets.
  • Uses new quick connect fittings which may require alterations to the existing water lines.
  • The 1/4" terminal adapters slide on top of the 3/16" spades, this is only needed for models that require the 1/4" spades.
  • Includes (1) 2-Solenoid Water Valve with Bracket and Water Line Guard, (2) Terminals.

Specifications:

  • Color: Blue / Green / Brown.
  • Material: Plastic / Metal.
  • Electrical Specs: 120V, 50/60Hz, 35W (Brown Solenoid) & 20W (Green Solenoid).
  • Dimensions: 4-5/16"L x 3-5/8"W x 3-3/4"H.

Compatible Models:

How do I find my model number?
WR57X10051 Refrigerator Dual Water Inlet Valve For Kenmore

Repair Skill Level: 2 | Beginner to Moderate
Minimal disassembly (if any) and some basic tools may be needed.

Part Description: The water inlet valve controls the flow of water from the water supply line to the ice maker and water dispenser.

Failure Symptoms: Water dispenser and ice maker not working; Small ice cubes due to insufficient water supply; Water leaking.

Testing: Disconnect power to the unit and remove the water valve. Use a multimeter to check for continuity. The result should be between 200 and 500 ohms, unless otherwise marked on the side of valve. If your testing doesn't fall withing the suggested continuity range, it should be replaced.

Bonus Tip: Test to see if water pressure is the problem first. Water pressure to the water valve should be at least 20 psi. To visually test your water pressure, first shut off the home's water supply valve. Next detach the water supply line from the valve and hold the line over a bucket. Once over the bucket, turn the home water supply valve back on and watch the flow of water into the bucket. A weak flow of water indicates possible problems with the water line or the home water supply valve. A strong flow of water indicates a possible problem with the inlet valve.

Disclaimer: Information and recommendations contained herein are believed to be accurate as of the date hereof. Since the conditions and methods of use of the information referred to are beyond control, ApplianceRepairForum.com and Thrifty Appliance Parts LLC, cannot be held liable for results obtained or arising from use or reliance on such information.
The User assumes responsibility associated with making test measurements, adjustments, parts replacements and any other action necessary to perform any recommended procedures. It is the responsibility of the User to ask for clarification if a recommendation is not fully understood, including the risks and hazards associated with the recommended procedures.
