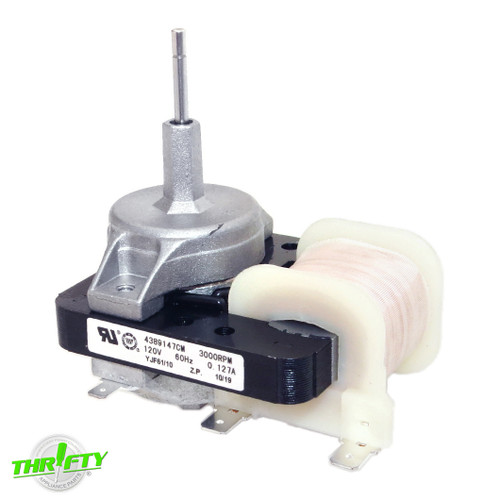

Replacement evaporator fan motor used for some Kenmore and Whirlpool refrigerator models.
Directly Replaces: WP4389147, 4389147, 2188357, 2203829, SM89147, 921544, AH650597, AP6009329, AP3140606, EAP650597, PD00004335, PS650597, PS11742486.
Features:
- Evaporator fan motor pulls air through the evaporator coils to remove heat from the circulating air within the unit.
- Commonly used on older units.
- Includes (1) Evaporator Fan Motor.
Specifications:
- Color: Black / White / Gray.
- Material: Plastic / Metal.
- Electrical Specs: 120V, 60Hz, 0.12A, 3000RPM.
- Dimensions: 3"L x 2-5/8"W x 3-1/2"H.
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
Repair Skill Level: 2 | Beginner to Moderate
Minimal disassembly (if any) and some basic tools may be needed.
Part Description: The evaporator fan motor draws air through the evaporator coils, which cools the air before circulating it throughout the fresh food and freezer sections. Be aware that some refrigerator models have (2) evaporator fan motors, one on the fresh food section and one in the freezer section.
Failure Symptoms: Refrigerator fresh food and/or freezer sections not cooling properly; Motor is noisy while running or doesn't run at all.
Testing: Unplug the unit and check the fan for obstructions caught in the blade path. Try turning the fan motor blade by hand. If it does not spin freely, replace the evaporator fan motor. If there are no obstructions and the blade spins freely, disconnect the fan motor and use a multimeter to test it for continuity. If there's no continuity, replace the motor.
Bonus Tip: Ensure that your refrigerator is maintaining the correct temperature by placing a fridge thermometer inside the unit. Generally, fresh food section should be set between 37 and 40 degrees Fahrenheit, and the freezer section should be set at or below zero degrees Fahrenheit.
Disclaimer: Information and recommendations contained herein are believed to be accurate as of the date hereof. Since the conditions and methods of use of the information referred to are beyond control, ApplianceRepairForum.com and Thrifty Appliance Parts LLC, cannot be held liable for results obtained or arising from use or reliance on such information.
The User assumes responsibility associated with making test measurements, adjustments, parts replacements and any other action necessary to perform any recommended procedures. It is the responsibility of the User to ask for clarification if a recommendation is not fully understood, including the risks and hazards associated with the recommended procedures.
-
