MEE61841401 Gas Range Ignitor For LG

(No reviews yet) Write a Review
SKU: APNMEE61841401
Condition: New
Compatible Brands:
Kenmore
Compatible Brands:
LG
$84.84
$33.75
(You save $51.09 )

5% Off Orders Over $75

© 2024 Thrifty Appliance Parts           Some photos taken on 1" x 1" grid.

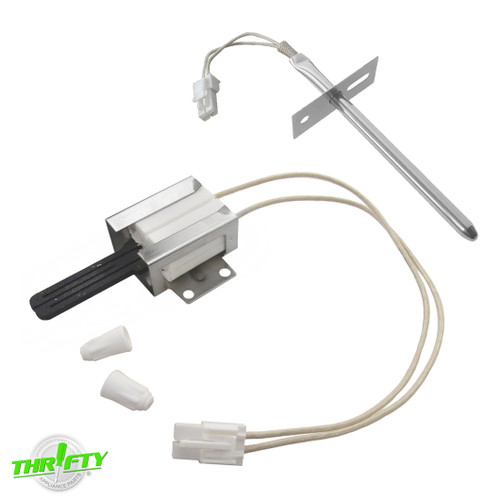

Replacement ignitor used for some Kenmore and LG gas range models.

Directly Replaces: MEE61841401, MEE63084901, MEE61841403, 1599783, AH3535362, AP5214765, EA3535362, EAP3535362, PD00001851, PS3535362.

Features:

  • Draws electrical current through the oven safety valve to open it, then ignites gas burners to heat the oven to temperature.
  • Flat style, cageless, glow bar ignitor.
  • Includes (1) Ignitor with 2-Wire Harness / Plug and Mounting Bracket, (2) Porcelain Wire Connectors.

Specifications:

  • Color: White / Black / Gray.
  • Material: Metal / Ceramic / Porcelain / Plastic.
  • Electrical Specs: 3.4 - 3.6A, 115V.
  • Ignitor / Bracket Dimensions: 3-3/8"L x 1-3/4"W x 7/8"H.
  • Additional Dimensions: Lead/plug assembly extends approx. 11-1/4" from ignitor.

Compatible Models:

How do I find my model number?
MEE61841401 Gas Range Ignitor For LG

Repair Skill Level: 2 | Beginner to Moderate
Minimal disassembly (if any) and some basic tools may be needed.

Part Description: Regulates the heat level of the burner element.

Failure Symptoms: Cannot control the burner temperature, or cannot turn the burner on/off; Burner will not heat.

Testing: If you're unable to control an electric burner, the burner's infinite switch should be replaced.

Bonus Tip: Easily determine if the element or switch is defective by switching the non-working element with a working one. If the new element works, the the old element was defective. If the new element does not work, it likely that the switch is defective.
