Replacement heater repair kit used for some Samsung dryer models.
Directly Replaces: DC47-00032A. DC93-00154A, 3282568, AP5582094, PS4216214, EAP4216214, PD00002235, DC32-00007A, 35001191, DE0007A, N3S1-K41, N3SI-K41, 1185513, 2068429, AH2038482, AP4201716, AP4045224, AP6008688, EA2038482, EAP2461163, PD00001996, PS2461163, PS4204984, PS2038482, PS11741828, WP35001092, 35001092, DC47-00018A, 503497, T-O-D 60T11, 1122485, 2068549, AH2038383, AP4201898, AP6008682, EA2038383, EAP2430930, EAP11741822, PD00002011, PD00004704, PS11741822, PS2038383, PS2430930, PS4205217, WP35001193 35001193, DC96-00887A, 1185515, AH2038484, AP6008689, EA2038484, EAP11741829, PD00003365, PS2038484, PS11741829.
Features:
- Used to repair DC93-00154A heater assembly. Produces heat while the dryer is in operation.
- Includes Heating element, Hi-Limit Thermostat, and Thermal Fuse used in APNDC93-00154A complete heater assembly.
- Also includes the thermistor that monitors the temperature inside the drum.

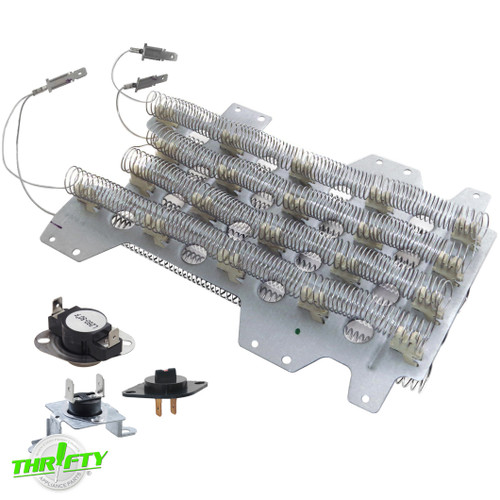

- Includes (1) APNDC47-00032A 3-Terminal (8-Coil) Heating Element, (1) APNDC47-00018A Hi-Limit Thermostat, (1) APNDC96-00887A Thermal Fuse, (1) APNDC32-00007A Thermistor.
APNDC47-00032A Heating Element Specifications:
- Color: Gray / Off-White.
- Material: Metal / Ceramic.
- Electrical Specs: 240V, 3700/1500W.
- Dimensions: 9-7/8"L x 6-1/2"W x 2-1/8"H.
APNDC47-00018A Hi-Limit Thermostat Specifications:
- Color: Black / Gray.
- Material: Metal / Plastic.
- Electrical Specs: 125/250V.
- Overall Dimensions: 1-1/2"L x 1-1/8"W x 2"H.
- Additional Dimensions: 1 1/8" between mounting holes (center to center); ¼" spade terminals.
APNDC96-00887A Thermal Fuse Specifications:
- Color: Gray / White.
- Material: Porcelain / Metal.
- Electrical Specs: 250V, 25A, 320°F.
- Dimensions: 2-1/4"L x 1-1/4"W x 1-1/4"H.
APNDC32-00007A Thermistor Specifications:
- Color: Black.
- Material: Metal / Plastic.
- Electrical Specs: 10K Ohms @ 77° F.
- Overall Dimensions: 2"L x 1"W x 1-7/8"H.
- Additional Dimensions: 5/8" between mounting holes (center to center).
Testing tip: Thermistors do not have continuity, they show resistance. Therefore, to test it you need a multimeter that measures ohms. With the power disconnected from the dryer, connect the multimeter to the thermistor. Then use a hair dryer to blow hot air over the thermistor. As the thermistor becomes hotter, its resistance should decrease. If the resistance doesn't change when the temperature changes, then thermistor should be replaced.
