5303935067 Oven Ignitor for Frigidaire / Westinghouse

(No reviews yet) Write a Review
SKU: APN5303935067
Condition: New
Compatible Brands:
Gibson
Compatible Brands:
Frigidaire
Compatible Brands:
Kenmore
Compatible Brands:
Tappan
Compatible Brands:
Westinghouse
$47.29
$31.75
(You save $15.54 )

5% Off Orders Over $75

© 2024 Thrifty Appliance Parts           Some photos taken on 1" x 1" grid.

Replacement ignitor used for some Frigidaire, Gibson, Kenmore, Tappan, and Westinghouse oven models.

Directly Replaces: 5303935067, 08011454, 08068021, 10220, 10872, 3016211, 3131872, 316030700, 316T023P04, 316T023P05, 316T023P08, 41-202, 5303016211, 5308011454, IGN-2, P205014, P205023, 8011454, 12873, AH470130, AP205014, AP2150413, AP00205014, EA470130, EAP470130, PD00000277, PS470130

Features:

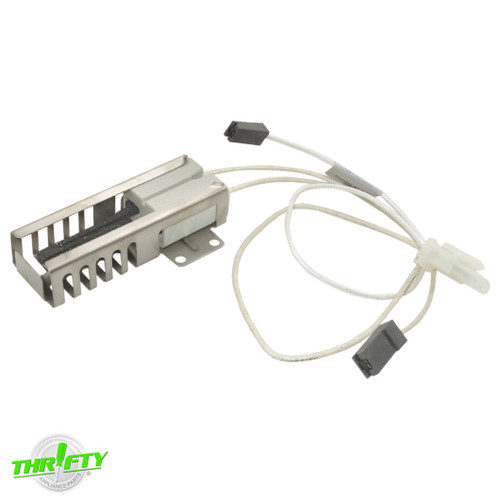

  • Flat style, ceramic igniter with mounting bracket.
  • Draws electrical current through the oven safety valve to open it, then ignites gas burners to heat the oven to temperature.
  • Includes (1) Igniter w/ Bracket and 2-wire Lead, (2) Ceramic Wire Connectors.

Specifications:

  • Material: Metal / Ceramic.
  • Electrical Specs: 3.2 - 3.6A.
  • Dimensions: 5.5"L x 1-3/4"W x 13/16"H (Cage / Bracket).
  • Additional Dimensions: Leads and plug measure 17"L.

Compatible Models:

How do I find my model number?
5303935067 Oven Ignitor for Frigidaire / Westinghouse

Repair Skill Level: 2 | Beginner to Moderate
Minimal disassembly (if any) and some basic tools may be needed.

Part Description: The ignitor draws electrical current through the oven safety valve to open it, then ignites gas burners to heat the oven to temperature.

Failure Symptoms: Oven not baking/broiling evenly, keeping the correct temperature, or not heating at all.

Testing: Observe the igniter during operation. If the igniter glows for more than 90 seconds without igniting the gas flame, the igniter is too weak to open the valve and should be replaced. If the igniter does not glow at all, use a multimeter to test the igniter for continuity. If there is not continuity, replace it. During operation, if the oven temp drops more than 40 degrees Fahrenheit before the igniter relights the burner, then it should be replaced.

Disclaimer: Information and recommendations contained herein are believed to be accurate as of the date hereof. Since the conditions and methods of use of the information referred to are beyond control, ApplianceRepairForum.com and Thrifty Appliance Parts LLC, cannot be held liable for results obtained or arising from use or reliance on such information.
The User assumes responsibility associated with making test measurements, adjustments, parts replacements and any other action necessary to perform any recommended procedures. It is the responsibility of the User to ask for clarification if a recommendation is not fully understood, including the risks and hazards associated with the recommended procedures.
