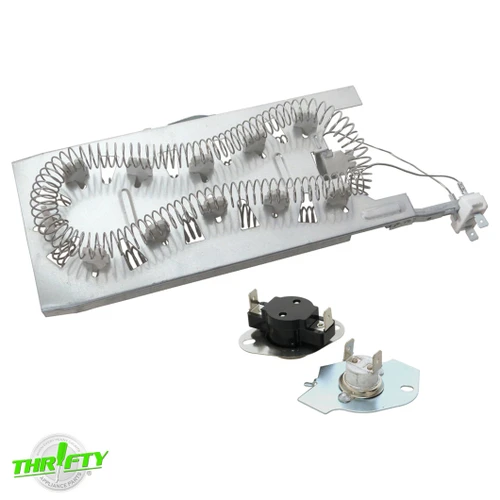

Replacement heating element with fuse and thermostat used for some Amana, Crosley, Kenmore, KitchenAid, Maytag, and Whirlpool dryer models.
Directly Replaces: WP3387747, 3387747, WP3387747VP, W11045584, W11344457, 80003, 525502, AP6008281, PD00002365, EAP11741416, PS11741416, 279769, 279548, 2796769, 279769VP, 3387812, 3389946, 3398671, 3977394, 695563, 80001, 2004, SET184, 2821, AP3094224, AH334278, EA334278, EAP334278, PD00002485, PS334278, B004XLDDNI, B0066EMD9A, B00Q6VCJNI, B0156N86YC, B002ZNCBNY, B0050KKZ0A, B0050KKZGO, B00Q6VCHV2, B00Q6VCE5Q, B01MPXY5FB, B0050KKZPA, B00Q6VCEDI, B00DBF70MM, B00Q6VCN5C, B0050KKZ6Y, B00Q6VCRDU, B00Q6VCP5U, WP3390291, AP6008306, 3390291, 696397, PS11741441, SET198, TJSET198, B00MSUARZS, B00MSUAKN2, B008DK4IZW, B00MSUATLU, B0053F7UV4, B00Q6VCN6G, B00MSUASSE, B0081E9VVG, B00PDXAEDM.
Features:
- Heating element produces heat while the dryer is in operation; Thermal cut-off kit prevents the dryer from overheating if the high limit thermostat fails.
- Must re-use the housing from the old heating element.
- Insulators and restring already attached for easy installation.
- Includes (1) Heating Element with (2) 5/16" terminals, (1) 3390291 Thermostat Replacement, (1) 3977394 Thermal Fuse Replacement.
APN3387747 Heating Element Specifications:
- Material: Metal / Porcelain.
- Electrical Specs: 240V, 5200W.
- Dimensions: 13-1/8"L x 6-3/8"W x 2-1/2"H.
APN279769 Thermostat & Fuse Specifications:
- Color: Black / White / Gray.
- Material: Metal / Plastic / Ceramic
- Thermostat Dimensions: 1-1/2"L x 1-1/8"W x 2"H.
- Thermostat: L248-80 degrees F.
- Thermal Fuse Dimensions: 2"L x 2"W x 7/8 x 2-1/8"H. Thermal Fuse: 352 degrees F.
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
