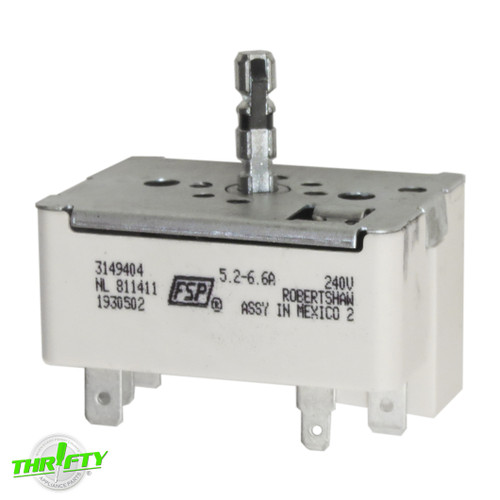

3149404 Range 6" Burner Infinite Switch For Whirlpool / Maytag / Amana

(No reviews yet) Write a Review
SKU: APN3149404
Condition: New
Compatible Brands:
Amana
Compatible Brands:
Caloric
Compatible Brands:
Estate
Compatible Brands:
Inglis
Compatible Brands:
Kenmore
Compatible Brands:
KitchenAid
Compatible Brands:
Maytag
Compatible Brands:
Roper
Compatible Brands:
Whirlpool
$34.24
$25.75
(You save $8.49 )

5% Off Orders Over $75

© 2024 Thrifty Appliance Parts           Some photos taken on 1" x 1" grid.

Replacement infinite switch used for some Amana, Caloric, Estate, Inglis, Kenmore, KitchenAid, Maytag, Roper, and Whirlpool range models.

Directly Replaces: WP3149404, 3149404, WP3149404VP, 310179, 311847, 311856, 311857, 314144, 3148951, W10295576, ES9404, NL811411, 1225515, 2711, AP6007668, EAP11740785, PD00003176, PS11740785.

Features:

  • Regulates the heat level of the burner element.
  • Used with some 6" elements.
  • Includes (1) 5-Terminal Infinite Switch.

Specifications:

  • Color: Gray / Almond.
  • Material: Plastic / Metal.
  • Electrical Specs: 240V,5.2-6.6A.
  • Dimensions: 2-1/4"L x 1-3/4"W x 2-5/16"H.

Compatible Models:

How do I find my model number?
3149404 Range 6" Burner Infinite Switch For Whirlpool / Maytag / Amana

Repair Skill Level: 2 | Beginner to Moderate
Minimal disassembly (if any) and some basic tools may be needed.

Part Description: Regulates the heat level of the burner element.

Failure Symptoms: Cannot control the burner temperature, or cannot turn the burner on/off; Burner will not heat.

Testing: If you're unable to control an electric burner, the burner's infinite switch should be replaced.

Bonus Tip: Easily determine if the element or switch is defective by switching the non-working element with a working one. If the new element works, the the old element was defective. If the new element does not work, it likely that the switch is defective.
