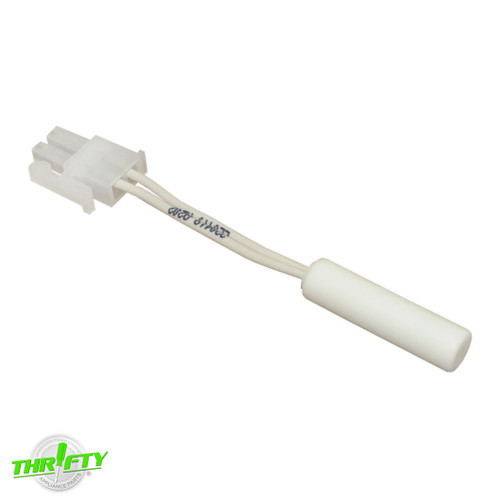

Replacement thermistor sensor used for some Crosley, Electrolux, Frigidaire, Kenmore, and White-Westinghouse refrigerator models.
Directly Replaces: 240597203, 240597201, 240597202, 7240597203, 1258948, AH1765215, AP4032998, EA1765215, EAP1765215, PD00000590, PS1765215.
Features:
- Monitors the temperature within the cabinet.
- Typically used on french door units.
- Includes (1) Temperature Sensor.
Specifications:
- Color: White.
- Material: Plastic / Metal.
- Finish: Glossy.
- Electrical Specs: 10K Ohm, NTC.
- Overall Dimensions: 3-5/8"L x 5/8"W x 5/16"H.
- Additional Dimensions: Sensor measures approx. 1-3/16"L x 5/16" Diameter.
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
Repair Skill Level: 2 | Beginner to Moderate
Minimal disassembly (if any) and some basic tools may be needed.
Part Description: The thermistor monitor the evaporator coils temperature and sends the reading to the control board.
Failure Symptoms: Inaccurate temperature display; freezer temp too warm/cold and/or inconsistant; Frost or ice build up; Freezer running for longer than normal periods of time or cycling on and off frequently.
Testing: Test the thermistor, using a multimeter. The thermistor resistance should change along with the refrigerator temperature. If the thermistor resistance does not change with the surrounding temperature, or if the thermistor does not have continuity, it should be replaced.
Bonus Tip: Ensure that your refrigerator is maintaining the correct temperature by placing a fridge thermometer inside the unit. Generally, fresh food section should be set between 37 and 40 degrees Fahrenheit, and the freezer section should be set at or below zero degrees Fahrenheit.
Disclaimer: Information and recommendations contained herein are believed to be accurate as of the date hereof. Since the conditions and methods of use of the information referred to are beyond control, ApplianceRepairForum.com and Thrifty Appliance Parts LLC, cannot be held liable for results obtained or arising from use or reliance on such information.
The User assumes responsibility associated with making test measurements, adjustments, parts replacements and any other action necessary to perform any recommended procedures. It is the responsibility of the User to ask for clarification if a recommendation is not fully understood, including the risks and hazards associated with the recommended procedures.
-
Wrong temp Freezing wrong side
Easy fix to a huge problem. Fixed the problem by freezing the food on the wrong side of the fridge.
