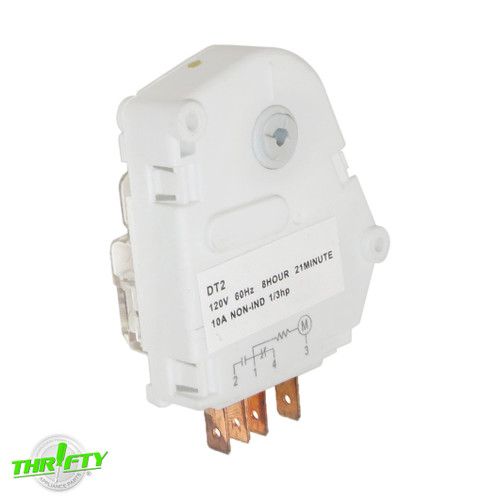

GP11 68233-2 Refrigerator Defrost Timer for Maytag / Admiral / Magic Chef

(1 review) Write a Review
SKU: APNDT2
Condition: New
Compatible Brands:
Maytag
Compatible Brands:
Whirlpool
$20.64
$8.75
(You save $11.89 )

5% Off Orders Over $75

© 2024 Thrifty Appliance Parts           Some photos taken on 1" x 1" grid.

Replacement defrost timer used for some Admiral, Amana, Crosley, GE, Hoover, Jenn-Air, Magic Chef, Maytag, Norge, and Whirlpool refrigerator models.

Directly Replaces: DT2, WP68233-2, 68233-2, 66556-8, 69543-4, TJ90SPA1403FL, ER2183400, ER482493, GP11, SPA1403FL, SPB1401F, 1335, AP6010563, AP4503261, EAP11743746, PD00003308, PS11743746.

Features:

  • Turns On/Off the compressor and defrost fan motors at regular intervals.
  • Set to run a 21 minute defrost cycle every 8 hours.
  • The (4) terminals are numbered 2,1,4,3.
  • Includes (1) 4-Terminal Defrost Timer.

Specifications:

  • Color: Off-White.
  • Material: Plastic / Metal.
  • Electrical Specs: 60Hz, 10A, 1/3 HP, 8HR 21MIN Run Time.
  • Dimensions: 3-1/8"L x 2-1/4"W x 1-5/8"H.

Compatible Models:

How do I find my model number?
GP11 68233-2 Refrigerator Defrost Timer for Maytag / Admiral / Magic Chef

Repair Skill Level: 2 | Beginner to Moderate
Minimal disassembly (if any) and some basic tools may be needed.

Part Description: The defrost timer turns the defrost heater on at different internvals throughout the day to melt any accumulated frost from the evaporator coils.

Failure Symptoms: Excessive buildup of frost/ice; Refrigerator runs too long; Refrigerator and/or Freezer too cold or too warm.

Testing: To test the timer, slowly advance the dial into the defrost cycle. This should turn off the compressor and turn on the defrost heater. If the defrost heater doesn't turn on or if it turns on, but doesn't turn back off at the end of it's cycle, it signals that the timer is not advancing correctly.

Bonus Tip: Ensure that your refrigerator is maintaining the correct temperature by placing a fridge thermometer inside the unit. Generally, fresh food section should be set between 37 and 40 degrees Fahrenheit, and the freezer section should be set at or below zero degrees Fahrenheit.

Disclaimer: Information and recommendations contained herein are believed to be accurate as of the date hereof. Since the conditions and methods of use of the information referred to are beyond control, ApplianceRepairForum.com and Thrifty Appliance Parts LLC, cannot be held liable for results obtained or arising from use or reliance on such information.
The User assumes responsibility associated with making test measurements, adjustments, parts replacements and any other action necessary to perform any recommended procedures. It is the responsibility of the User to ask for clarification if a recommendation is not fully understood, including the risks and hazards associated with the recommended procedures.

  • Magic Chef Refrigerator
    5

    Posted by Hozona Bullock on 23rd Aug 2022

    The timer is working great for an after market part!
