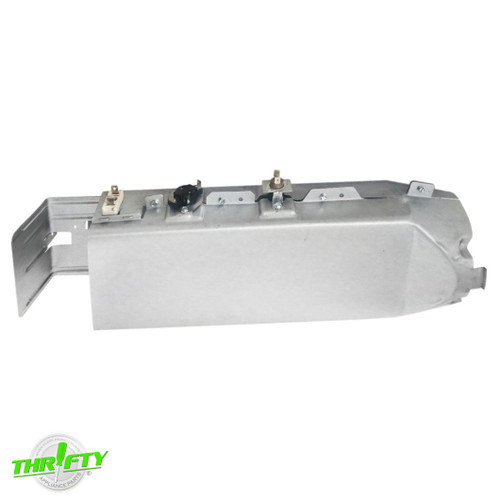

Replacement complete heating element assembly with housing, thermostat, and fuse used for some Amana, Kenmore, Maytag, and Samsung dryer models.
Directly Replaces: DC97-14486A, DC97-14486D, DC97-08891A, DE486A, 1795935, AP4342351, EAP2432265, PD00002003, PS2432265.
Features:
- Produces heat while the dryer is in operation.
- Fully assembled in a metal housing, with replacement DC47-00018A hi-limit thermostat and replacement DC96-00887A thermal fuse.
- Includes (1) Heater Assembly with Housing, L260-50 Hi-Limit Thermostat, and Fuse.
Specifications:
- Material: Metal / Ceramic.
- Electrical Specs: 240V, 5300W.
- Overall Dimensions: 20-1/4"L x 7"W x 5-1/4"H.
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
Repair Skill Level: 2 | Beginner to Moderate
Minimal disassembly (if any) and some basic tools may be needed.
Part Description: The heating assembly produces heat while the dryer is in operation.
Failure Symptoms: Dryer overheats, will not heat at all, or takes an increasing amount of time to dry your clothes.
Testing: Check for damage or breaks in the element coil. Use a multimeter to test it for continuity. If there is damage to the coil or if heating element does not have continuity, replace it.
Bonus Tip: The thermal fuse and high limit thermostat should also be checked for failure, as they may also be affected.
